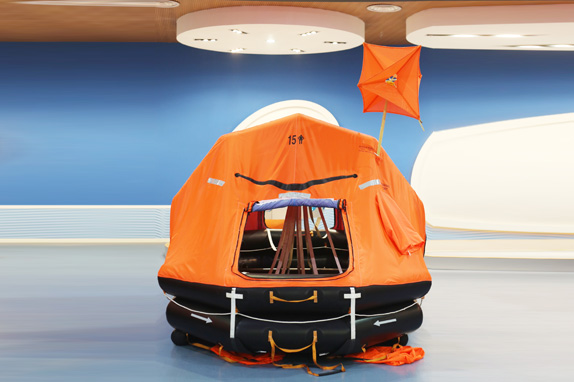

KHZD type automatically self-righting davit-launched inflatable liferafts
KHZD type automatically self-righting davit-launched inflatable liferafts
KHZD type automatically self-righting davit-launched inflatable liferafts
KHZD type automatically self-righting davit-launched inflatable liferafts

Tel:0086-21-58941315

fax:0086-21-58940504

E-mail:service@youlongrubber.com

Contact Us
  • Application
  • Parameter

Approval Standard
1. Regulation 4、26 & 34, Chapter III of SOLAS 1974, as amended
2. Chapter I and IV of MSC48.(66) International Life-saving Appliance Code (LSA Code) and MSC.218(82)、MSC.293(87)
3. Sections V of  Parts1; Sections V of Parts 2of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliances and MSC.226(82)、MSC.295(87)、MSC323.(89)
4. China MSA“Regulations for the Statutory Surveys of Ships and Offshore Installations-Technical Regulations for the Statutory Surveys of Sea-going ships Engaged in Domestic Voyages”2011, Part4, Ch.3 and Revision 2012
It can be used in the ships engaged on international voyages.


TYPE EXAMINATON CERTIFICATES


Type

CCS

EC/DNV

KHZD-15

Y

N

KHZD-16

Y

N

KHZD-20

Y

N

KHZD-25

Y

Y

KHZD-30

Y

N

KHZD-35

Y

N

KHZD-37

Y

Y




Remark: Y------YES,  N------NO




Type

KHZD-15

KHZD-16

KHZD-20

KHZD-25

KHZD-30

KHZD-35

KHZD-37

physical form

rectangular octagon

Carrying capacity (pers)

15

16

20

25

30

35

37

Length(mm)

4350

4350

4900

5300

5640

6240

6240

Width(mm)

2400

2400

2700

3100

3750

3750

3750

Height(mm)

2050

2050

2250

2350

2650

2650

2650

Working pressure of  buoyancy tube, kPa

20

20

20

20

20

20

20

Working pressure of
floor, kPa

2.7

2.7

2.7

2.7

2.7

2.7

2.7

Specification of
cylinder (L)×Quantity

6×2

6×2

9×2

12.5×2

18×2

18×2

18×2

Gas Weight (g)

CO2

3600

3600

5600

8000

10000

10000

10000

N2

250

250

400

600

1000

1000

1000

Water pockets

Quantity

6

6

7

9

11

13

13

Total volume, L

343

343

400

514.8

629.2

743.6

743.6

Weight,kg   ≤

175

180

211

266

337

350

357
